sonnen Battery · SOLRITE Equipment
German-engineered
home energy storage.
- Eleven generations of battery R&D, sonnen has been building residential storage longer than almost anyone.
- Lithium iron phosphate (LFP) chemistry, safer thermal profile, longer cycle life than NMC packs.
- VPP-native , built from day one for grid services, not retrofitted later.
60 kWh
Max stackable capacity
11th gen
Generations of sonnen R&D
12+
Grid services supported
10 yr
Standard warranty
What makes sonnen different
A battery designed around the grid, not a phone scaled up.
sonnen has been building residential storage in Bavaria since 2010, eleven product generations before most U.S. competitors had a single one. The Battery 11 carries that lineage: lithium iron phosphate (LFP) cells chosen for thermal stability and cycle life, an integrated battery management system tuned for daily deep cycling, and a control stack that was built for virtual power plant participation from day one rather than bolted on after launch.
That matters because a SOLRITE battery isn't sitting idle. It charges from your solar, discharges during evening peak, and quietly contributes to grid services in the background, year after year. sonnen's chemistry and software are engineered for exactly that workload.
2010
First sonnen battery shipped
LFP
Cell chemistry
10,000+
Cycle life
sonnen Battery 11 · Technical specifications
The full spec sheet.
| Capacity (modular) | Stackable in 5 kWh modules, configured at 10, 15, 20, 30, 45, or 60 kWh total residential capacity |
|---|---|
| Cell chemistry | Lithium iron phosphate (LFP / LiFePO₄) |
| Coupling | AC-coupled, compatible with most existing residential solar inverters |
| Continuous AC output | Up to 8 kW per inverter unit (scales with stack configuration) |
| Surge / peak output | Short-duration peak above continuous rating for motor and inrush loads |
| Operating temperature | -10°C to 50°C (14°F to 122°F) |
| Enclosure rating | NEMA 3R / IP65, outdoor-rated |
| Cycle life (warranty) | 10,000+ cycles over warranty term |
| Warranty | 10 years standard, extendable |
| Certifications | UL 9540A (thermal runaway), UL 1741-SB (smart inverter), UL 1973 (battery), IEEE 1547 |
| Monitoring | sonnenConnect cloud platform, iOS & Android app, real-time state-of-charge, production, and consumption data |
| Grid services | 12+ supported, frequency regulation, peak shaving, demand response, capacity dispatch, ERCOT ancillary services |
Specifications reflect the sonnen Battery 11 as configured for U.S. residential installation. Final dimensions, weight, and per-unit ratings depend on stack configuration and are confirmed during site survey.
How a sonnen battery
actually works in your home.
Charges from your solar daily
Through the morning and afternoon, your rooftop solar generates more than your home is using. Instead of pushing that surplus to the grid for nothing, the sonnen battery captures it, full by mid-afternoon on a typical sunny day.
Discharges during peak & outages
When the sun drops and rates climb, your home pulls from the battery instead of the grid. When the grid drops entirely, ERCOT freeze, hurricane, planned shutoff, the sonnen switches to backup in a few seconds. Lights, fridge, internet stay on.
Participates in the VPP
During normal operation, your sonnen contributes a small share of its capacity to grid services through the Virtual Power Plant. The grid gets a more reliable resource. You get a battery that helps fund itself, with no impact on your backup reserve.
Built to live outside
Wall-mount, weather-rated, quiet by design.
The sonnen Battery 11 is rated NEMA 3R / IP65, suitable for outdoor wall-mount in Texas heat, Massachusetts winters, and the kind of weather both states throw at a home. Operating range runs from -10°C to 50°C, so the battery keeps cycling through summer afternoons and freeze events alike.

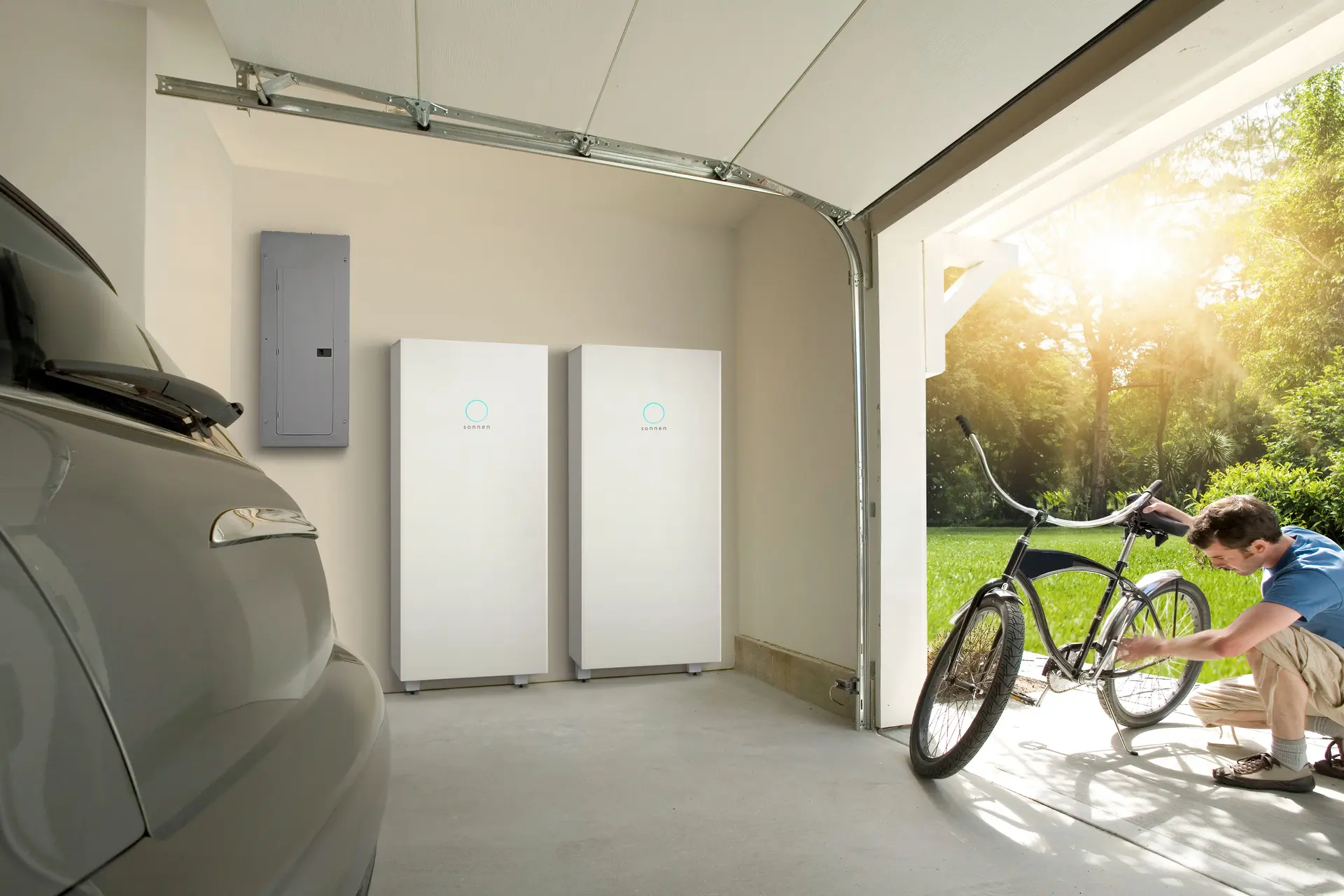

Indoor garage installation is also supported. Your SOLRITE site survey confirms the exact placement, conduit run, and electrical interconnect for your home, before a single bracket is hung.
Where the sonnen fits in the SOLRITE lineup
Two programs. One battery.
Paired with rooftop solar in Texas
For Texas homes adding new solar with SOLRITE, the sonnen battery is the standard pairing, up to 60 kWh, sized to your roof and usage, included in the $0-down Solar VPA.
See the Texas program →MassachusettsSOLRITE's flagship MA battery
In Massachusetts, the sonnen Battery 11 is the featured storage product for solar + battery installs, built for ConnectedSolutions and the regional grid services market.
See the Massachusetts program →SOLRITE's standalone Battery-Only VPA, offered in select markets, uses a different product line. See the Battery VPA page for details.
sonnen Battery FAQs
Want a sonnen battery on your home?
Tell us your address, we'll confirm availability and walk you through the right SOLRITE program for your state.
